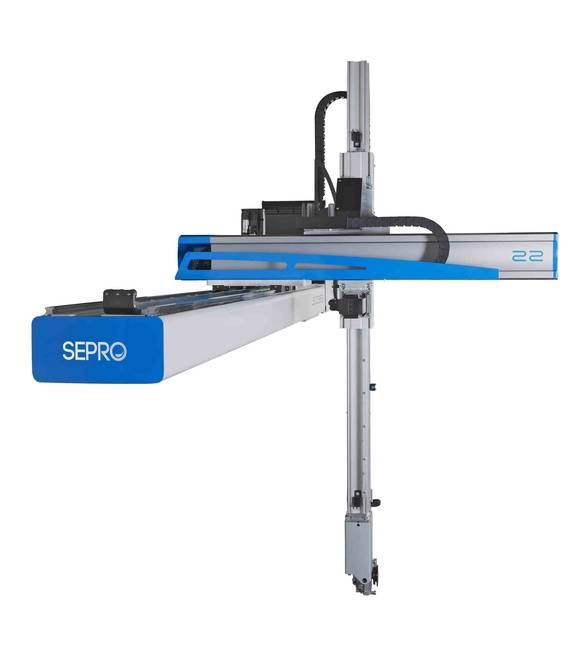

Sepro - Success 22

Success The success of your applications

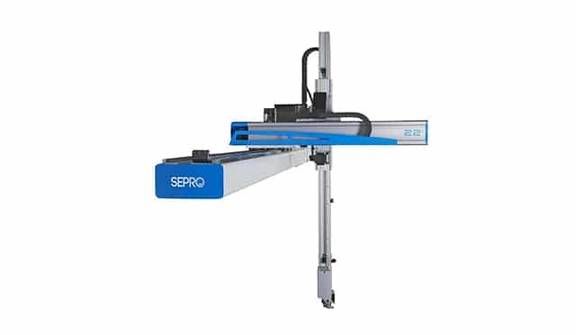

3-Axis robots
60 - 900 T

Success is a range of universal and economic robots that provide all the performance and reliability that you expect from Sepro.

The Success Line has been completely redisigned by Sepro. This best-seller is now also available in a 5-axis version, making best-in-class technology more affordable and more compact. These 3 or 5-axis are available for IMMs from 60 to 900 tons and enhanced gripping components : larger capacity & more compact.



Download the brochure
Get a quote Request information

Presentation

«What you see is what you get»

Overview

Overview

  • 3 & 5-axis
  • New Cam for follower technology
  • Up-to-date design
  • More compact and increased rigity
  • Enhanced Gripping components
  • Optimized maintenance operations
  • Higher payload capacity
  • Wider strokes for more IMM size compatibility
Recognized reliability

Recognized reliability

Success is a range of universal robots that reinforces the fundamentals of the best seller, Axess, which has been sold in thousands, in particular with longer strokes and heavier loads. Like Axess, Success is equipped with the Touch 2 control system.

When reliability rhymes with innovation

When reliability rhymes with innovation

Success benefits from the very latest technology, as well as the reliable and high-performance mechanical designs developed by our design offices. Success has been designed from the modular S mechanical platform developed for Success and S5 Line.

Simply Intuitive

Simply Intuitive

With the Simple Pick-and-Place Module, create your cycle by just answering the system’s questions and see the result immediately in 3D on the video (Simple Pick-and-Place and regular stacking).

Success 22 in 3D

Control systems

Visual 2
For more complex applications, Visual 2 controls the different peripheral equipment: conveyors, even complex ones, for palletizing parts and distributing interleaves, insert molding or even a sprue cutter station. Learn more
Visual2 - control command
Touch 2
The Touch 2 control system is simple and intuitive and you can use it to quickly create a simple pick & place cycle. Task-based navigation enables direct access depending on the task to be done: production, tool change, programming and maintenance. Learn more

Specifications

Success 5
Mold clamping force (Metric Tons) 20-80
Horizontal stroke 1000-1500
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 400
Ejector stroke - Maximum instantaneous speed 2
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke 1000
Vertical telescopic compact arm - Maximum instantaneous speed 3
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 3
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit 1
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm)
Maximum instantaneous speed
Maximum load (parts + EOAT) kg
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load 2,5
Flexibility
VISUAL 2 command
Success 11C
Mold clamping force (Metric Tons) 50-150
Horizontal stroke 1500-3500
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 500
Ejector stroke - Maximum instantaneous speed
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm) 1000-1200
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 5
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load
Flexibility
VISUAL 2 command
Success 11
Mold clamping force (Metric Tons) 80-250
Horizontal stroke 1500-4000
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 500 | 700 (LD)
Ejector stroke - Maximum instantaneous speed 2
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm) 1200-1400
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 6
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load
Flexibility
VISUAL 2 command
Success 22
Mold clamping force (Metric Tons) 200-500
Horizontal stroke 1500 - 6000
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 700 | 900 (LD)
Ejector stroke - Maximum instantaneous speed 2
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm) 1400-1600
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 10
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load
Flexibility
VISUAL 2 command

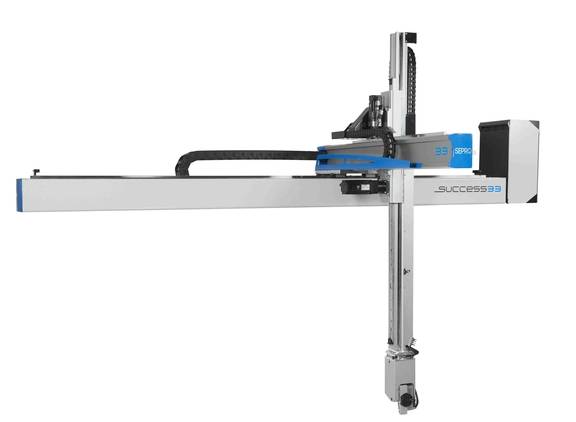

Success 33
Mold clamping force (Metric Tons) 350-900
Horizontal stroke 2000 - 7000
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 900 | 1100 (LD)
Ejector stroke - Maximum instantaneous speed 2
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm) 1600-1800
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 15 | 20 (HL)
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load
Flexibility
VISUAL 2 command
Mold clamping force (Metric Tons)
Horizontal stroke
Horizontal stroke - Maximum instantaneous speed
Ejector stroke
Ejector stroke - Maximum instantaneous speed
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
Digital vacuum switch
Ground control cabinet
app.ui.product_attributes.commande_visual3_option
Part grip - Vacuum and/or pressure circuit
Embedded control cabinet
Compact end-of-beam control cabinet
Touch 2 command
Vertical telescopic arm
Vertical stroke (mm)
Maximum instantaneous speed
Maximum load (parts + EOAT) kg
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Pneumatic rotation R1 0-90°
Pneumatic rotation R2
Pneumatic rotation R3
Maximum load
Flexibility
VISUAL 2 command
Success 5
20-80
1000-1500
2
400
2
1000
3
3
1
2,5
Success 11C
50-150
1500-3500
2
500
1000-1200
3
5
Success 11
80-250
1500-4000
2
500 | 700 (LD)
2
1200-1400
3
6
Success 22
200-500
1500 - 6000
2
700 | 900 (LD)
2
1400-1600
3
10
Success 33
350-900
2000 - 7000
2
900 | 1100 (LD)
2
1600-1800
3
15 | 20 (HL)

Applications

  • Simple Pick & Place
  • Simple stacking applications
  • Complex applications with Visual 2
